Midwest Optical : BP810
Description
Midwest Optical Infrared Bandpass Filter BP810
Available Models Include:
| BP810-25.4 |
| BP810-13.25 |
| BP810-22.5 |
| BP810-25.5 |
| BP810-27 |
| BP810-30.5 |
| BP810-34 |
| BP810-35.5 |
| BP810-37 |
| BP810-37.5 |
| BP810-40.5 |
| BP810-43 |
| BP810-46 |
| BP810-49 |
| BP810-52 |
| BP810-55 |
| BP810-58 |
| BP810-62 |
| BP810-67 |
| BP810-72 |
| BP810-77 |
| BP810-82 |
| BP810-86 |
| BP810-95 |
| BP810-105 |
Features
→Test effects of IR lighting on an application
→Optimize results achieved with IR lighting/fluorescence
→Block all UV and visible light
→Shields systems from unwanted light
→Enhance contrast for improved viewing of desired features
→Improve resolution in the IR (chromatic aberration correction)
→Suitable for laser diodes
Specifications
Full Width Half Max (50% point) +/- 10nm: 775-840nm
Min Peak Trans: 90%
Surface Quality Scratch & Dig: 40/20
Mount Options: T=Standard Threaded Lens Mount; S=Slip-On Mount; C=C/CS-Camera Mount (M25.4); F=Filter, No Mount
Resources & Documents

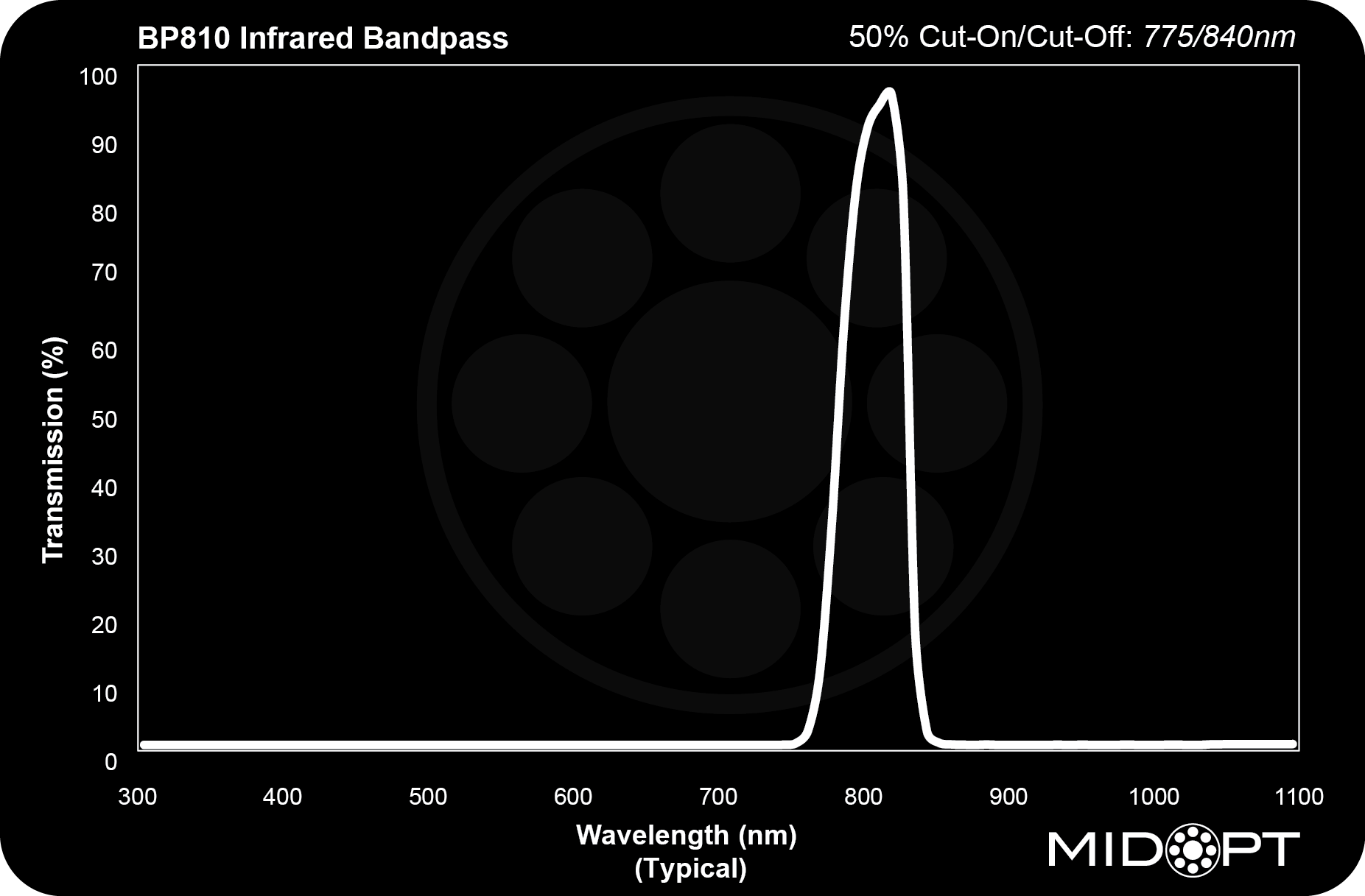

| midopt_bp810_curve.png | Curve Graph |
